Week 12-13 Montage Poster

This poster is the final submission for workshop 3. It shows the peace of the scene and clearly state the process and skills I used in the montage process.

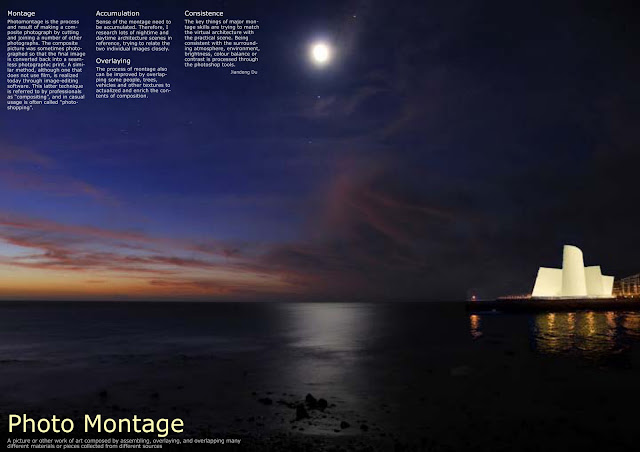

Montage Poster

Week11 "Flipbook"

The second assignment of project 3 was to make a series of images which need to express the interior space movement of the model we created in the last week. And try to develop the previous sculpture into a architecture form.

01

02

03

04

05

06

07

08

09

10

11

12

13

This series of hand-drawing images show clearly the movement of people going towards the building and experience inside the building.

Week10 "Montage It"

Montage: A picture or other work of art composed by assembling, overlaying, and overlapping many different materials or pieces collected from different sources.


I think this workshop has properly combine two of our previous assignment's skills together- model making and drawing, which are two of the main architectural representation. With modelling, an original conceptual were formed and drawing helps to develop the concept and direction and modification.


In the first week, we were supposed to understand design core theorem of one of the three chosen artists. As I was born to have the preference in some "dynamically freedom movement of curve"(complex idea I make up). Richard Serra's designs are my best choice.My understanding of Richard Serra's artworks is that he was trying to use the curve wall with large scale, directing people through the space and then suddenly turn up to be a broad opening. It is a language between closed and open.

Richard Serra's work: Torqued Ellispe

With this understanding, I attempt to to create a similar experience through the space. It was a combined concepts of light tower, masts and sail.

Conceptual Model

Week5- 8 Submission 2 "Draw It"

Four original hand-drawing facade in 1:100 & Plans & Section

SOUTH ELEVATION 1:100

WEST ELEVATION 1:100

EAST ELEVATION 1:100

NORTH ELEVATION 1:100



FIRST FLOOR 1:100

GROUND FLOOR PLAN 1:100

SECTION 1:100

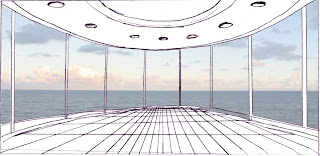

Some Perspective Drawing: Some hints for starters are find some photos online and print them out, use tracing paper to trace the major lines and then render them with different drawing techniques. Use photoshop to adjust the brightness, contract, level, color and so on.

Interior 1

Bedroom

Living Room

Living Room 2

Terrace

Kitchen

Week1-4 Submission 1-Model It

This workshop is about learning some architectural models techniques and how to use different  materials in presenting our intentions towards real architectures.

Poster for First Submission

First House Model

Models

Fish House 1:50

1: 50 Fish House is a detail development of our previous work, which is the site plan of Fisher House. And when during analyzing the plan, I noticed that most of the structural walls, functional stairs and living area and  windows concentrated in two facades of the whole building. So I decided to open those south and east facades, making them transparent with plastic to show the interior space.

Fisher House
